Technical Specifications
Main
Main Input Voltage
230 V
Other Input Voltage
220 V
240 V
Main Output Voltage
230 V
Other Output Voltage
220 V
240 V
Rated power in W
2700 W
Rated power in VA
3000 VA
Input Connection Type
BS1363A British
IEC 320 C20
Schuko CEE 7 / EU1-16P
NB of power socket outlets
8 IEC 320 C13
3 IEC Jumpers
1 IEC 320 C19
Number of Rack Unit
2U
Number of Cables
1
Battery Type
Lead-acid battery
Provided equipment
Documentation CD
Rack mounting hardware
Rack mounting support rails
USB cable
General
Product Web Sub-family
Cloud-enabled monitoring
Redundant
No
Physical
Height
8.6 cm
Width
43.2 cm
Depth
68.3 cm
Net Weight
44.28 kg
Mounting Location
Front
Mounting Preference
No preference
Mounting Mode
Rack-mounted
Two Post Mountable
0
USB compatible
No
Input
Input voltage limits
151 - 302 V adjustable
160 - 286 V
Network Frequency
50/60 Hz +/- 3 Hz auto-sensing
Output
Harmonic Distortion
Less than 5 %
Maximum Configurable Power in VA
3000 VA
Maximum Configurable Power in W
2700 W
Transfer Time
6 ms typical : 10 ms maximum
UPS Type
Line interactive
Wave Type
Sine wave
Output Frequency
50/60 Hz +/- 3 Hz sync to mains
Conformance
Product Certifications
CE
EAC
IRAM
RCM
VDE
Marking
GS Mark
Standards
EN 60950
EN/IEC 62040-1
EN/IEC 62040-2
Environmental
Acoustic Level
55 dBA
Heat Dissipation
348 Btu/h
Operating Altitude
0 - 10000 ft
Ambient Air Temperature for Operation
0 - 40 °C
Ambient Air Temperature for Storage
-15 - 45 °C
Storage Altitude
0 - 15240 m
Relative Humidity
0 - 95 %
Storage Relative Humidity
0 - 95 %
Batteries & Runtime
Extended Runtime
0
Number of Battery Filled Slots
0
Number of Battery Free Slots
0
Battery Recharge Time
3 Hours
Number of Battery Replacement Quantity
1
Battery Life
3 - 5 year(s)
Battery Power in VAH
547 VAh runtime
Battery Charger Power
182 W rated
Communications & Management
Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Control Panel
Multifunction LCD status and control console
Free Slots
1
Surge Protection and Filtering
Surge energy rating
320 J
Contractual warranty
Warranty
3 Years repair or replace (excluding battery) and 2 years for battery

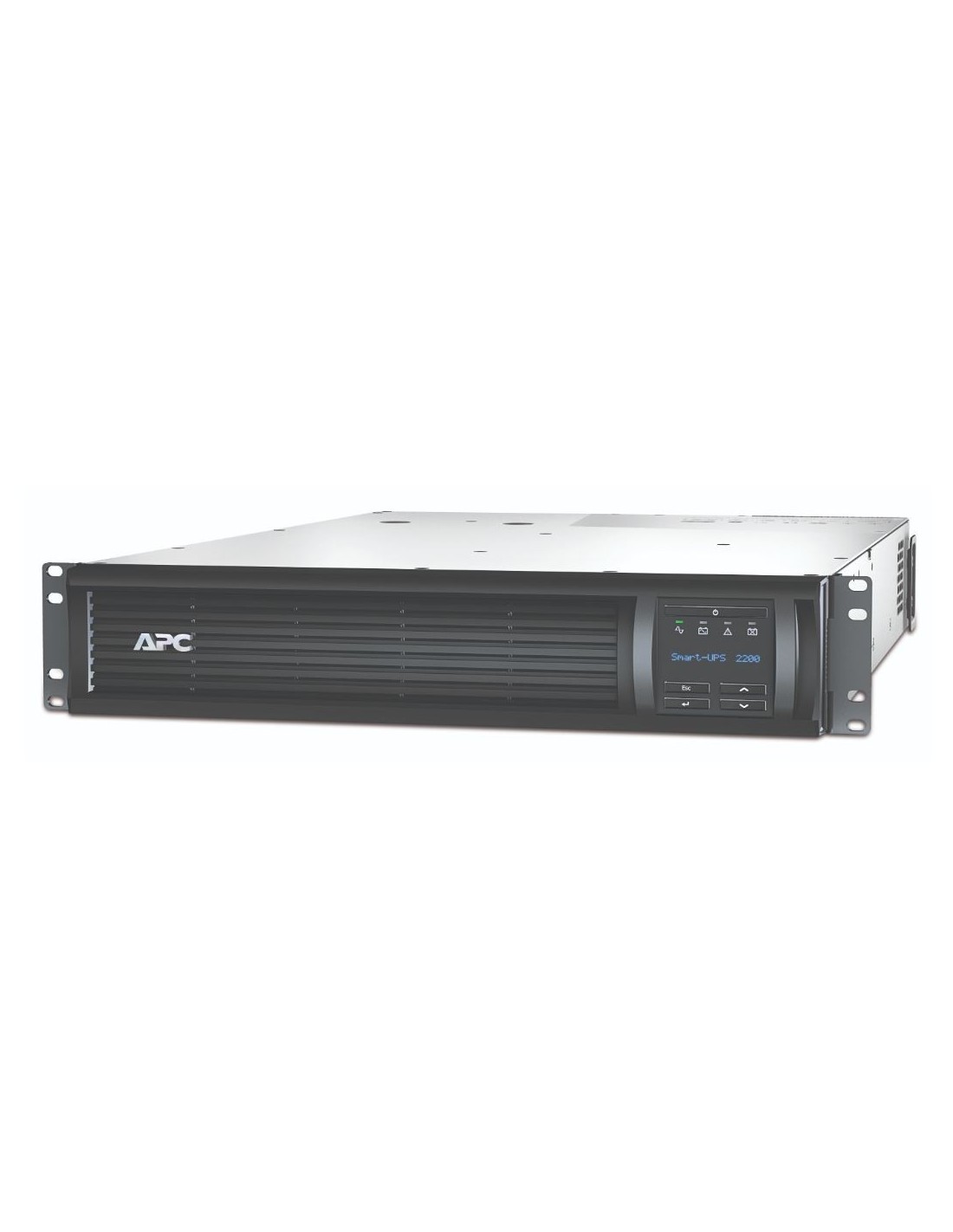

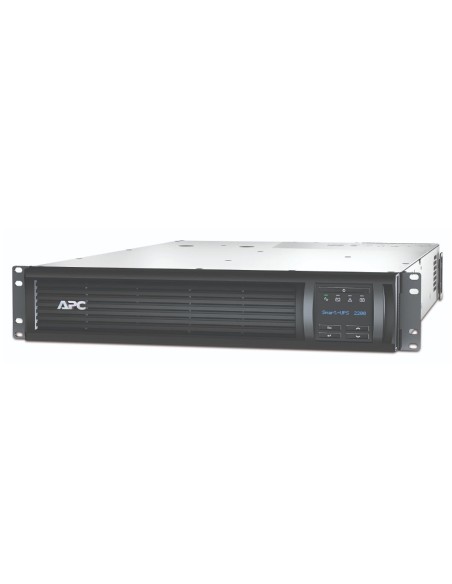

SMT3000RMI2UC
