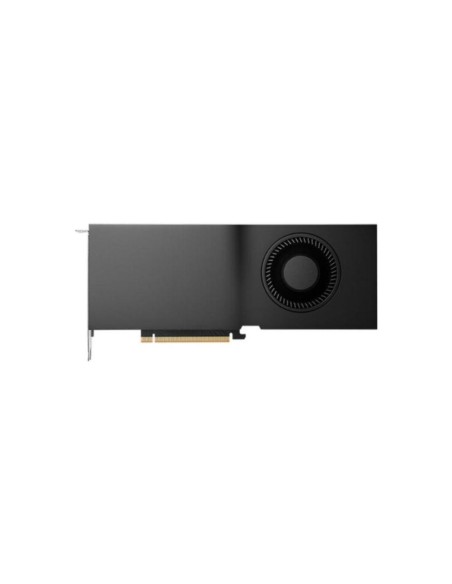

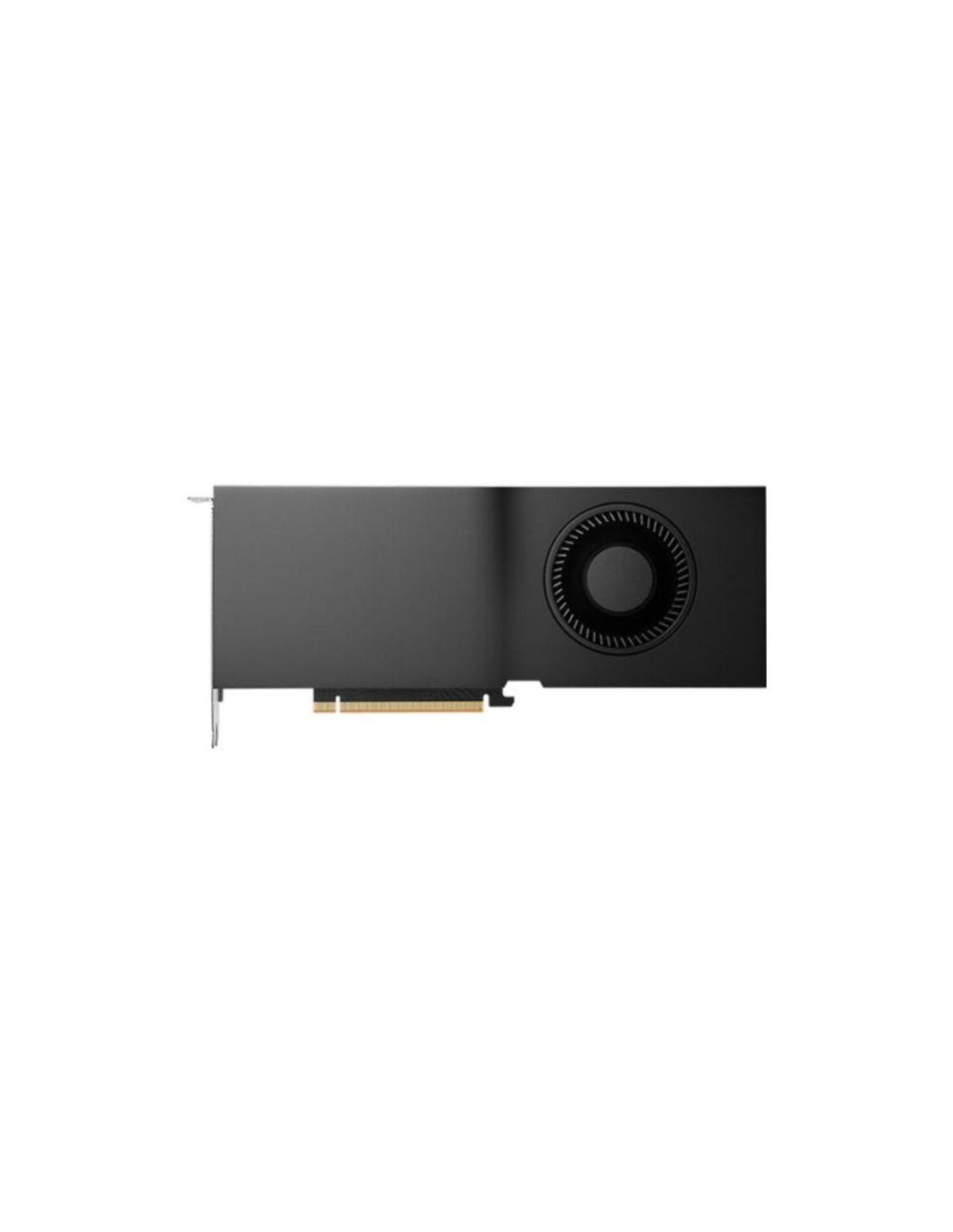

NVIDIA RTX 5000 Ada, 32GB, GDDR6, 256-bit, 576 GB/s, PCIe 4.0 x 16, Dual Slot, 4x Mini DisplayPort 1.4a, 250W, Ada Lovelace
- Manufacturer Code -
The NVIDIA RTX 5000 Ada is Powered by the NVIDIA Ada Lovelace architecture Designed to deliver outstanding gaming and creating, professional graphics, AI, and compute performance. It has a Single slot card featuring 32 GB of DDR6 memory and a 250W maximum power limit. NVIDIA RTX 5000 supports x16 PCIe 4.0 connectivity. The RTX 5000 combines 100 thirdgeneration RT Cores, 400 fourth-generation Tensor Cores, and 12,800 CUDA cores to deliver the next generation of AI graphics and petaFLOPS inferencing performance, accelerating rendering, AI, graphics, and compute workloads. RTX 5000-powered workstations equip you for success in today’s demanding business landscape.
GPU Architecture: Ada Lovelace
GPU Memory: 32GB GDDR6 with ECC

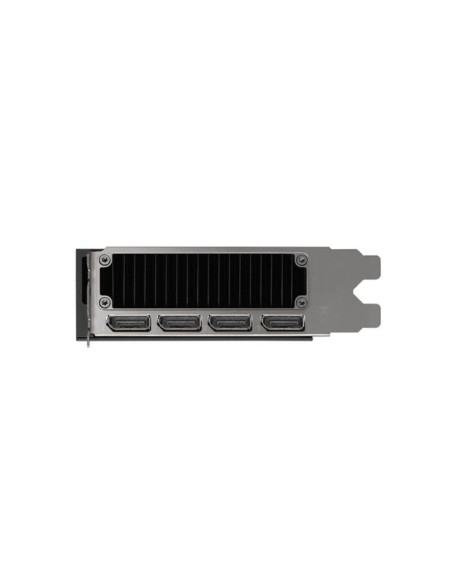

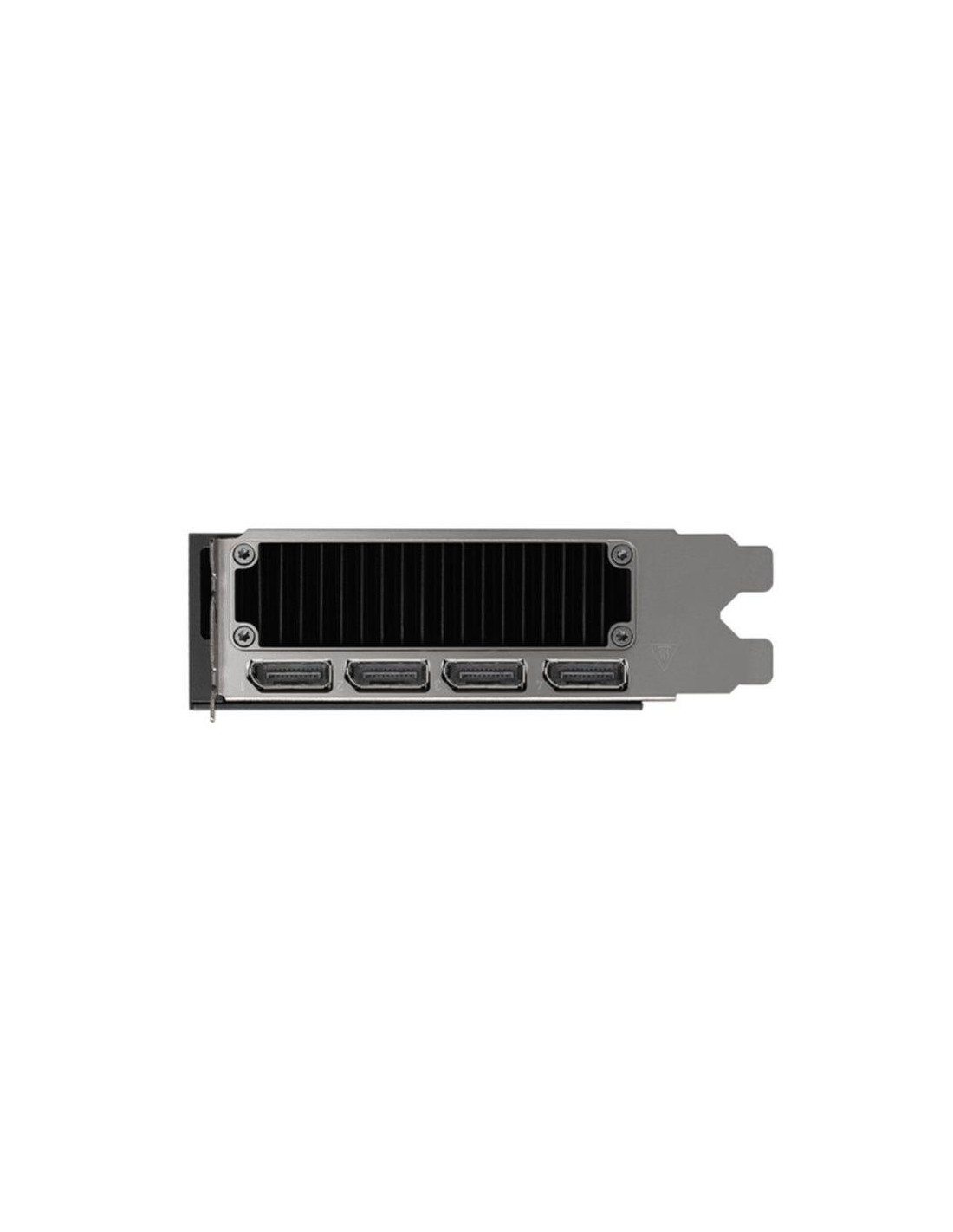

Display Ports: 4 x DisplayPort 1.4a
Max Power Consumption: 250W
Graphics Bus: PCIe Gen4 x 16
Form Factor: 4.4" H x 10.5" L, dual slot
| Model | NVIDIA RTX 5000 |
|---|---|
| GPU memory | 32GB GDDR6 |
| Memory interface | 256-bit |
| Memory bandwidth | 576GB/s |
| Error-correcting code (ECC) | Yes |
| CUDA Cores | 12800 |
| Tensor Cores | 400 |
| RT Cores | 100 |
| Single-precision performance | 65.3 TFLOPS |
| RT Core performance | 151.0 TFLOPS |
| Tensor performance | 1044.4 TFLOPS |
| NVIDIA NVLink | No |
| NVIDIA NVLink bandwidth | No |
| System interface | PCIe 4.0 x16 |
| Power consumption | Total board power: 250W |
| Thermal solution | Active |
| Form factor | 4.4H x 10.5L, Dual Slot |
| Display connectors | 4x DisplayPort 1.4a |
| Max simultaneous displays | 4x 4096 x 2160 @ 120 Hz |
| Max simultaneous displays | 4x 5120 x 2880 @ 60Hz |
| Max simultaneous displays | 2x 7680 x 4320 @ 60Hz |
| Encode/decode engines | 2x encode, 2x decode (+AV1 encode and decode) |
| VR ready | Yes |
| vGPU software support | NVIDIA vPC/vApps, NVIDIA RTX Virtual Workstation |
| vGPU profiles supported | See the Virtual GPU Licensing Guide |
| Graphics APIs | DirectX 12, Shader Model 6.7 |
| Graphics APIs | OpenGL 4.6, Vulkan 1.3 |
| Compute APIs | CUDA 12.2, OpenCL 3.0, DirectCompute |
| Warranty | 3 Years |
900-5G132-2540-000
