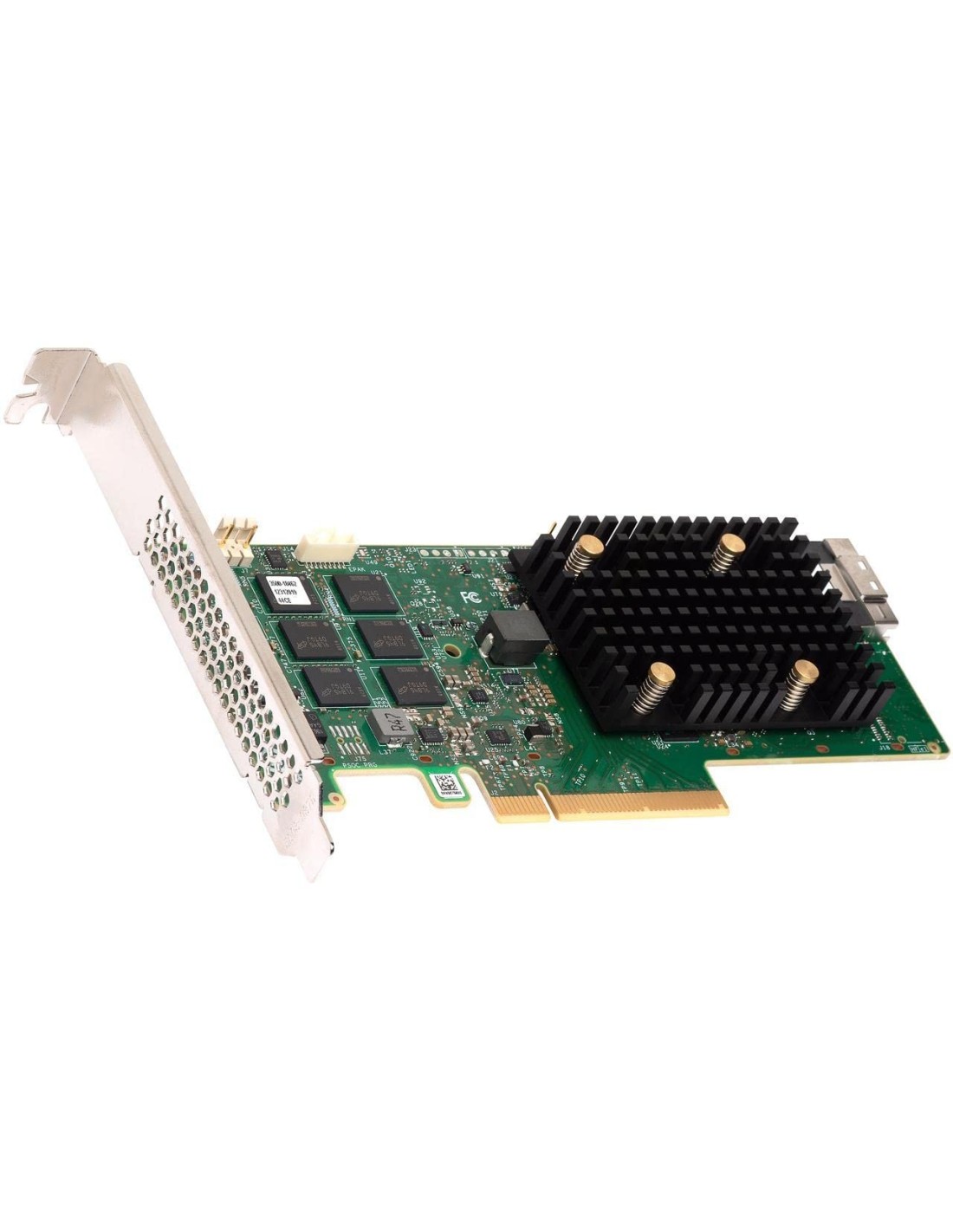

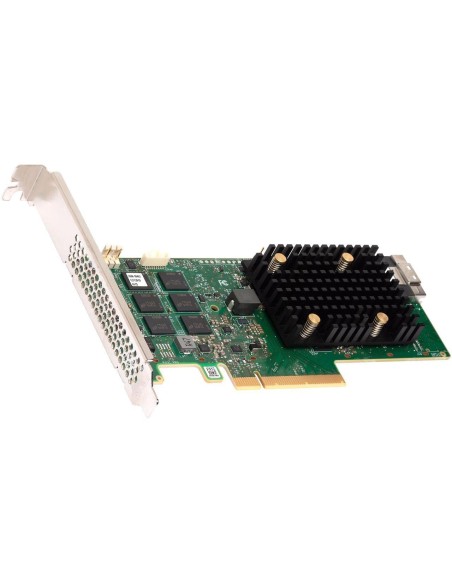

Broadcom 9500-8i Tri-Mode Storage HBA
Broadcom 9500-8i Tri-Mode Storage HBA

Broadcom 9500-8i Tri-Mode Storage HBA

Broadcom MegaRAID Tri-Mode adapters consolidate SAS, SATA and NVMe connectivity on a single PCIe Gen 4.0 x8 RAID-on-Chip, delivering up to twice the throughput of prior generations in 8- and 16-port configurations for both internal and external deployments. Paired with supercapacitor-based CacheVault modules (CVPM05/CVM02), they offload write-back cache to non-volatile flash during power loss—eliminating battery maintenance and lowering total cost of ownership



The 9500-8i is a Tri-Mode HBA providing NVMe, SAS and SATA support through a single adapter, ideal for direct-attached storage and high-port connectivity.

  • Host Interface: PCIe Gen 4.0 x8
  • Storage Interface: 12 Gb/s SAS, 6 Gb/s SATA, Gen 4.0 PCIe (NVMe)
  • Port Count: 8 internal
  • ROC: SAS3816 or SAS3808
  • Max Devices: SAS/SATA: 1024; NVMe: 32
  • Dimensions: 155.52 × 68.77 mm
  • Typical Power: 5.96 W
9500-8i
