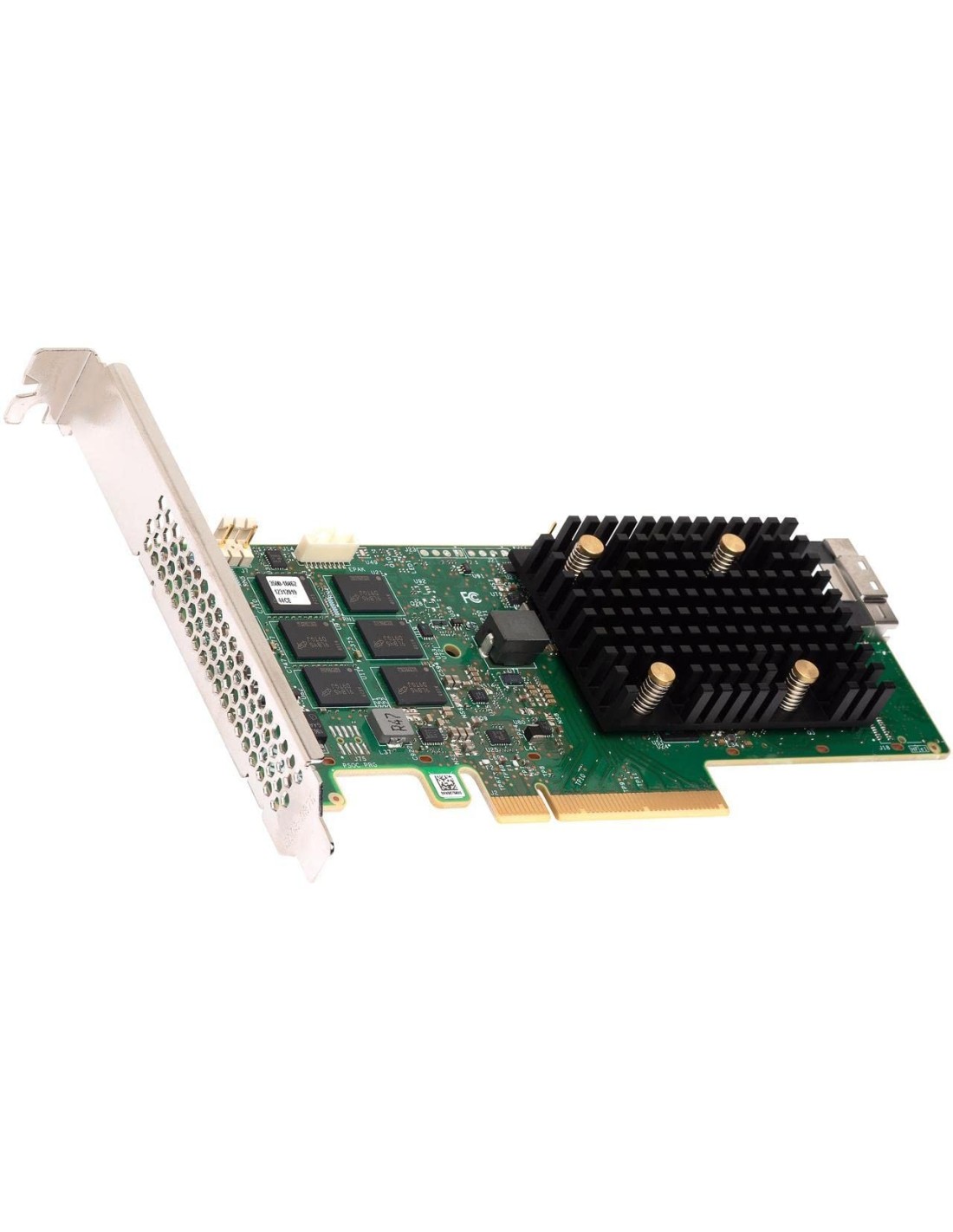

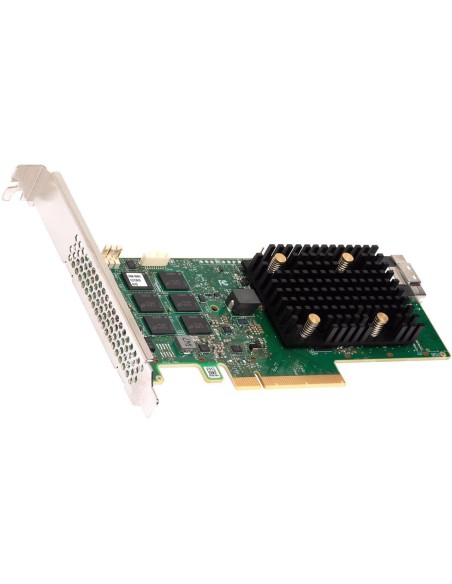

Broadcom eHBA 9600-16e Tri-Mode Storage Adapter
Broadcom eHBA 9600-16e Tri-Mode Storage Adapter

Broadcom eHBA 9600-16e Tri-Mode Storage Adapter

Broadcom MegaRAID Tri-Mode adapters consolidate SAS, SATA and NVMe connectivity on a single PCIe Gen 4.0 x8 RAID-on-Chip, delivering up to twice the throughput of prior generations in 8- and 16-port configurations for both internal and external deployments. Paired with supercapacitor-based CacheVault modules (CVPM05/CVM02), they offload write-back cache to non-volatile flash during power loss—eliminating battery maintenance and lowering total cost of ownership



The 9600-16e Tri-Mode eHBA is designed for large-scale external enclosures, offering Gen 4 bandwidth and multiprotocol support in a low-profile card.

  • Host Interface: PCIe Gen 4.0 x8
  • Storage Interface: SAS 24 Gb/s, SATA 6 Gb/s, PCIe 4.0 (NVMe)
  • Port Count: 16 external
  • Max Devices: SAS/SATA: 240; NVMe: 32
  • Form Factor: Low profile, half-length x8
  • Security: Hardware Secure Boot & SPDM Attestation
  • MTBF: 5,000,000 hours @ 40 °C
9600-16e
