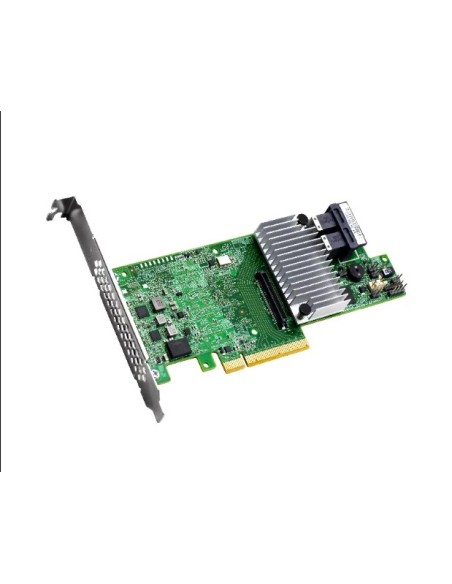

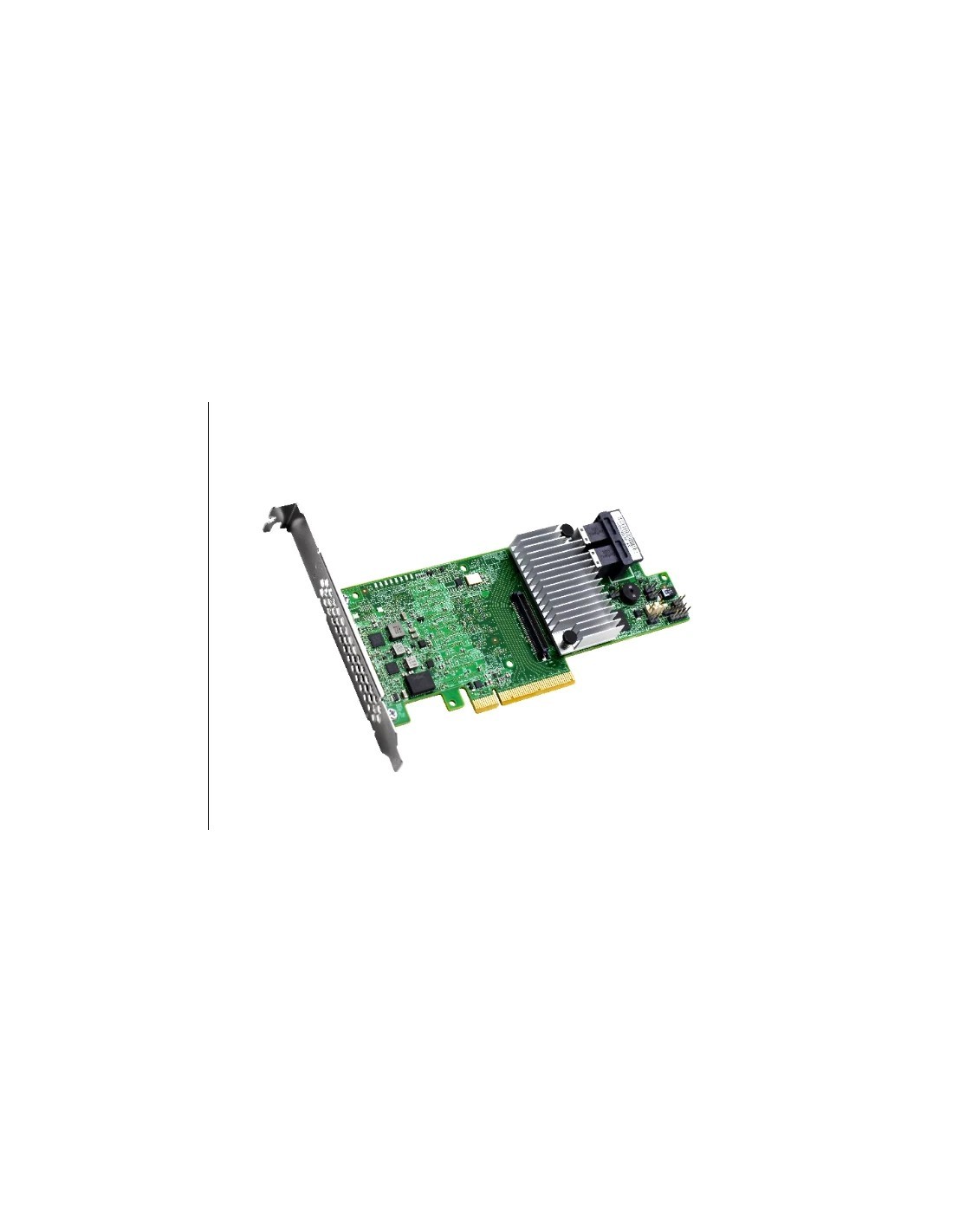

Broadcom MegaRAID 9361-8i Tri-Mode RAID Controller
Broadcom MegaRAID 9361-8i Tri-Mode RAID Controller

Broadcom MegaRAID 9361-8i Tri-Mode RAID Controller

Broadcom MegaRAID Tri-Mode adapters consolidate SAS, SATA and NVMe connectivity on a single PCIe Gen 4.0 x8 RAID-on-Chip, delivering up to twice the throughput of prior generations in 8- and 16-port configurations for both internal and external deployments. Paired with supercapacitor-based CacheVault modules (CVPM05/CVM02), they offload write-back cache to non-volatile flash during power loss—eliminating battery maintenance and lowering total cost of ownership



Broadcom MegaRAID 9361-8i Tri-Mode RAID Controller

  • SKU: 9361-8i (2 GB)

The 9361-8i (2 GB) is the same PCIe 3.0 x8 Tri-Mode RAID controller as the 1 GB model but featuring a larger 2 GB DDR3 cache for enhanced write-back performance, plus support for CacheVault (CVPM02/CVPM05) or battery backup unit protection.

  • Host Interface: PCIe Gen 3.0 x8
  • Storage Interface: 12 Gb/s SAS, 6 Gb/s SATA, PCIe 3.0 (NVMe)
  • Port Count: 8 internal
  • Cache: 2 GB DDR3
  • ROC: SAS3108
  • RAID Levels: 0, 1, 5, 6, 10, 50, 60
  • Cache Protection: CacheVault (CVM02/CVPM05) or BBU
  • Dimensions: 155.5 × 68 mm, low profile
  • Price: $540 ex
9361-8i (2 GB)
