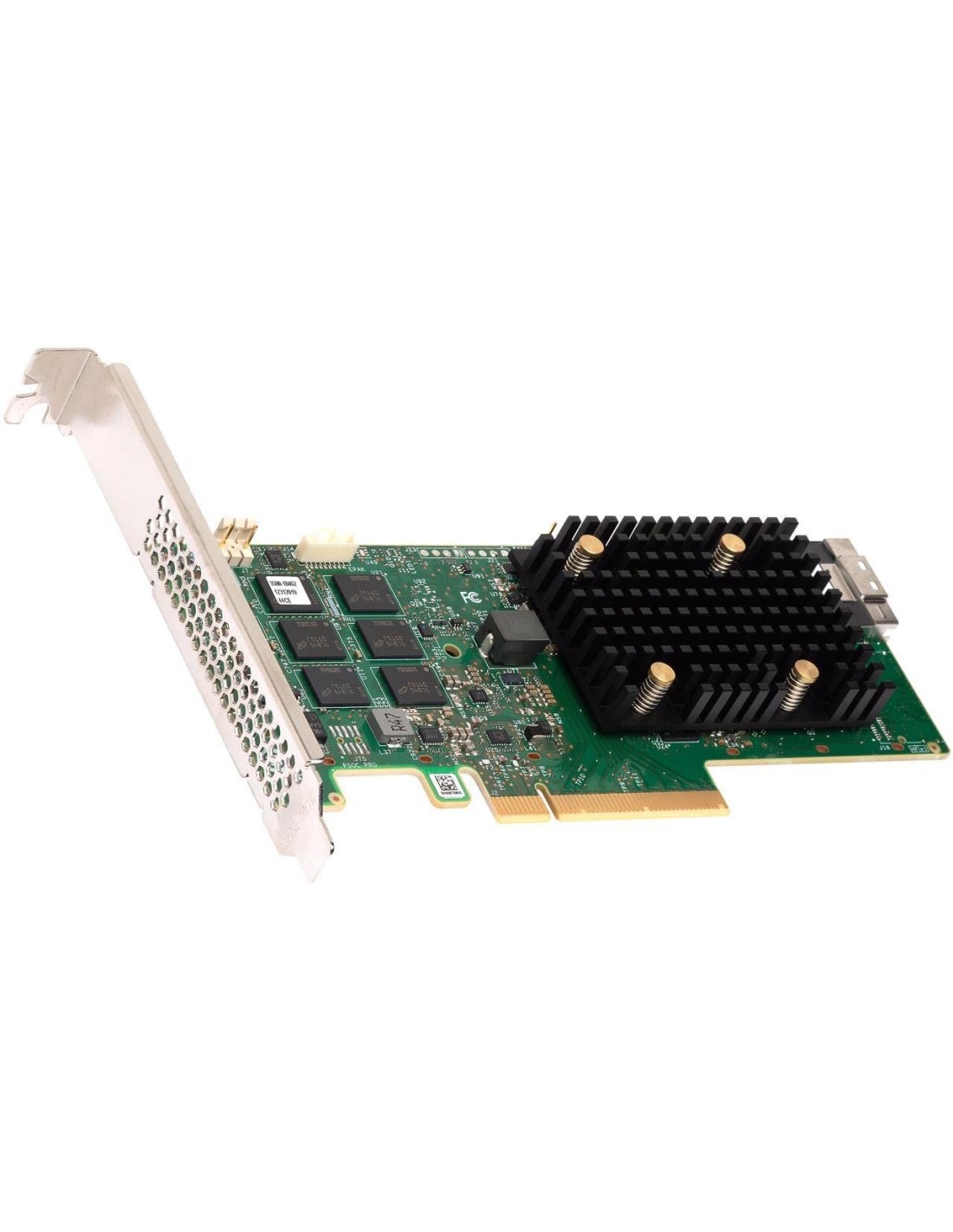

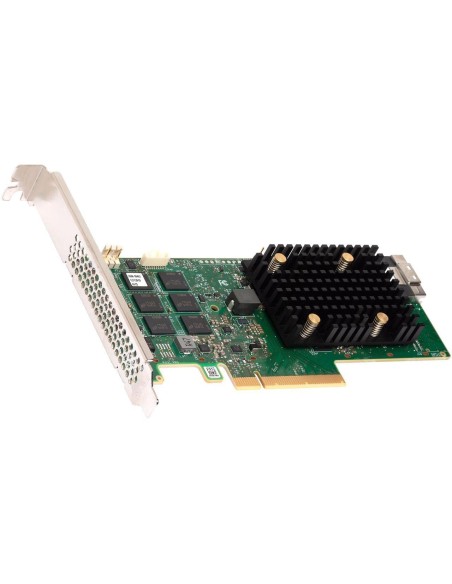

Broadcom MegaRAID 9540-8i Tri-Mode Storage Adapter
Broadcom MegaRAID 9540-8i Tri-Mode Storage Adapter

Broadcom MegaRAID 9540-8i Tri-Mode Storage Adapter

Broadcom MegaRAID Tri-Mode adapters consolidate SAS, SATA and NVMe connectivity on a single PCIe Gen 4.0 x8 RAID-on-Chip, delivering up to twice the throughput of prior generations in 8- and 16-port configurations for both internal and external deployments. Paired with supercapacitor-based CacheVault modules (CVPM05/CVM02), they offload write-back cache to non-volatile flash during power loss—eliminating battery maintenance and lowering total cost of ownership



The 9540-8i is part of the industry’s first PCIe Gen 4 RAID adapter family, optimized for high-performance RAID-on-Chip operations.

  • Host Interface: PCIe Gen 4.0 x8
  • Storage Interface: 12 Gb/s SAS, 6 Gb/s SATA, Gen 4.0 PCIe (NVMe)
  • Port Count: 8 internal
  • ROC: SAS3808
  • RAID Levels: 0, 00, 1, 10, 5, 50, 6, 60
  • Form Factor: 155.52 × 68.77 mm
  • Typical Power: 6.0 W
9540-8i
