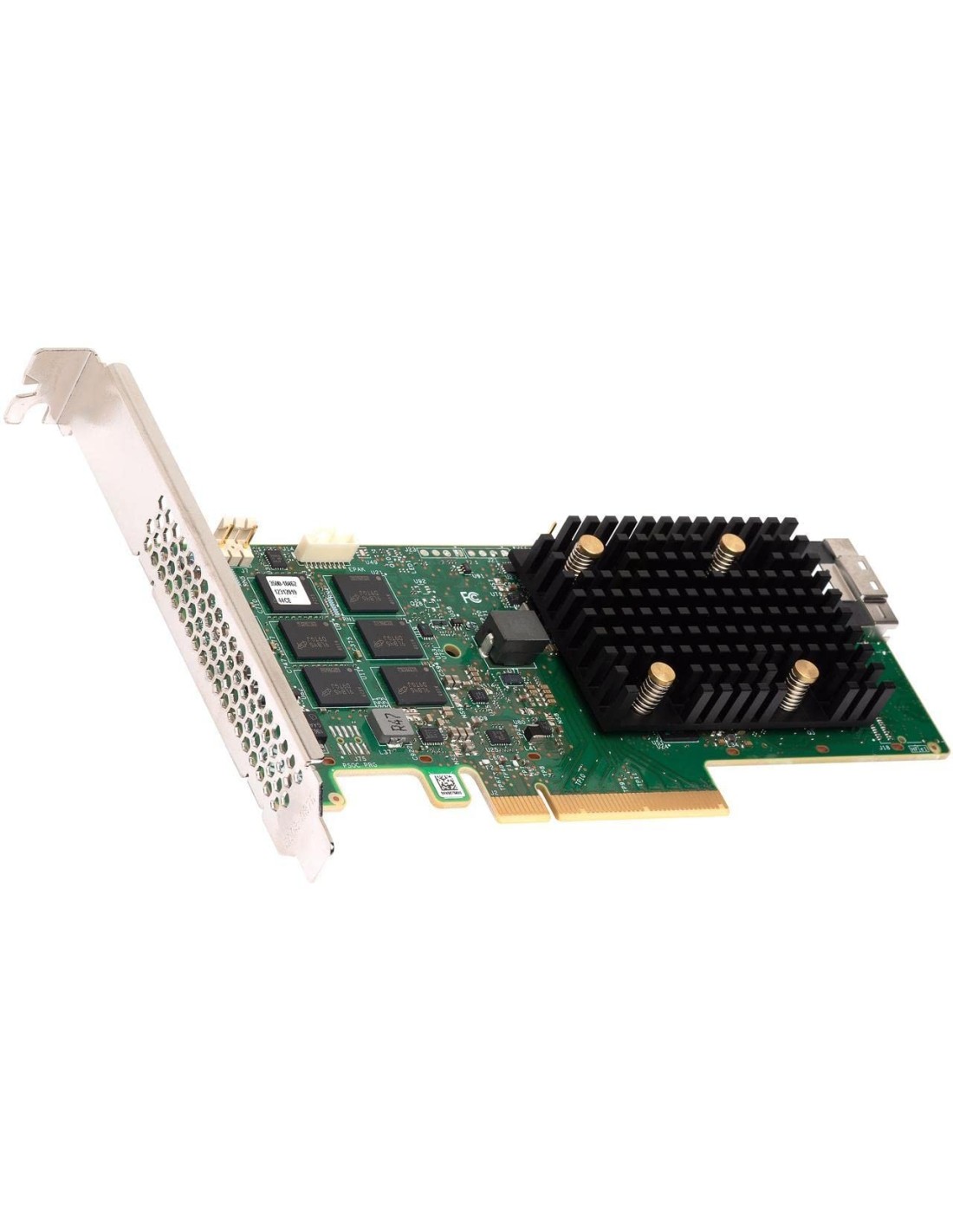

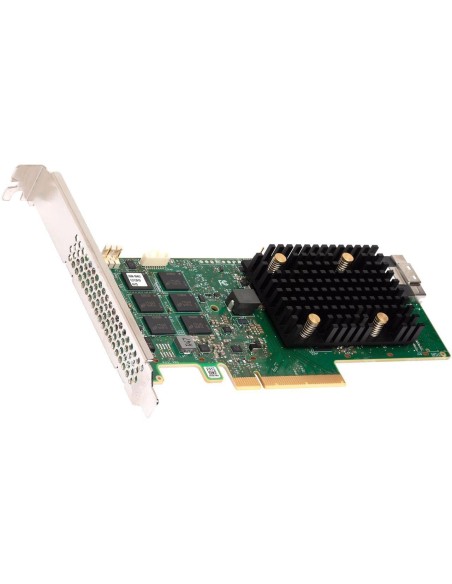

Broadcom 9500-16e Tri-Mode Storage HBA
Broadcom 9500-16e Tri-Mode Storage HBA

Broadcom 9500-16e Tri-Mode Storage HBA

Broadcom MegaRAID Tri-Mode adapters consolidate SAS, SATA and NVMe connectivity on a single PCIe Gen 4.0 x8 RAID-on-Chip, delivering up to twice the throughput of prior generations in 8- and 16-port configurations for both internal and external deployments. Paired with supercapacitor-based CacheVault modules (CVPM05/CVM02), they offload write-back cache to non-volatile flash during power loss—eliminating battery maintenance and lowering total cost of ownership



The 9500-16e provides 16 external ports for high-density external JBOD/JBOF connectivity, supporting SAS, SATA and NVMe via Tri-Mode SerDes.

  • Host Interface: PCIe Gen 4.0 x8
  • Storage Interface: 12 Gb/s SAS, 6 Gb/s SATA, Gen 4.0 PCIe (NVMe)
  • Port Count: 16 external
  • Connectors: 4 × SFF-8644
  • Max Devices: SAS/SATA: 1024; NVMe: 32
  • Dimensions: 167.65 × 68.77 mm
  • Typical Power: 8.74 W
9500-16e
